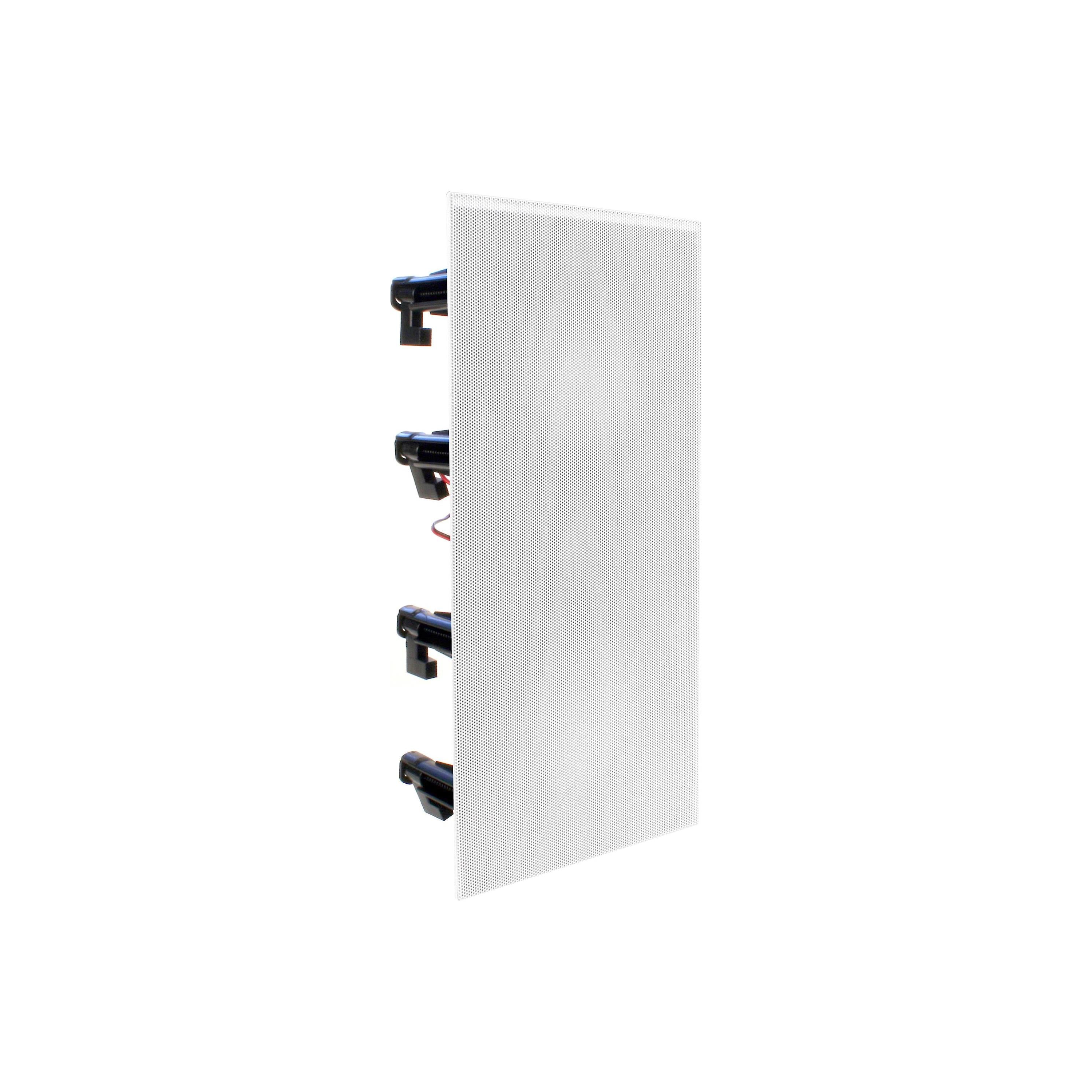

Revel W253L In-wall multi-purpose home theater speaker - W253L
Can be mounted Vertical or Horizontal for L-C-R applications
1" aluminum dome tweeter with waveguide
Nominal impedance: 8 ohms
Recommended amplifier power range: 10- 130 watts
Sensitivity (2.83V/1m): 91 dB
Frequency Range -3 dB from 55-18 Khz; -10dB from 40-20 kHz
Mounting depth: 3.5" (8.8 cm)
Weight: 5.6 lb (2.5 kg) / Shipping Weight:7.3 lb (3.3 kg)
Cutout dimensions (H x W): 14.1" x 6.4" (35.9 cm x 16.3 cm)
Includes zero-bezel magnetic grille
Grille finished dimensions (H x W): 15.1" x 7.4" (38.4 cm x18.8 cm)
C-2 fastening mechanism
Compatible with wall material thickness range: 0.5" “ 2.0" (1.3 cm “ 5.0 cm)
