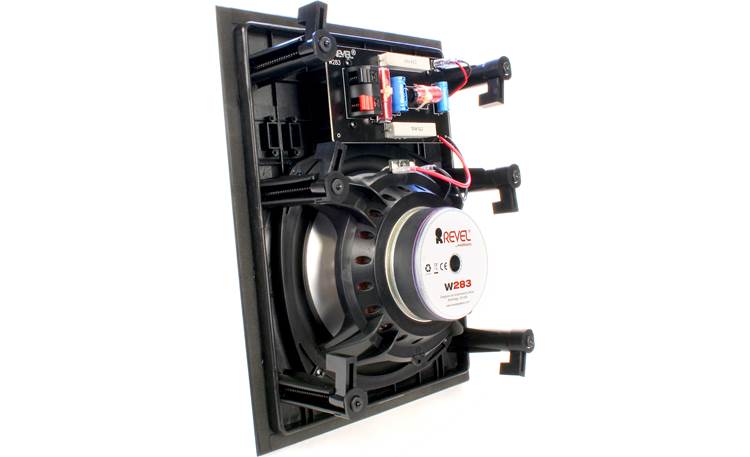

Revel W283 In-wall speaker - W283

8" Aluminum Cone, Cast-Polymer Frame Woofer
- 1" aluminum dome tweeter with waveguide
- Mounting depth: 3.7" (9.4 cm)
- Weight: 4.4 lb (2 kg) / Shipping weight: 6.3 lb (3 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 100 watts
- Sensitivity (2.83V/1m): 88 dB
- Frequency Range -3 dB from 37-18 kHz; -10dB from 29-20 kHz
